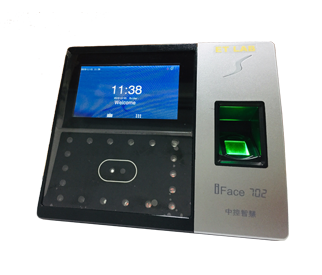

I-Face – 702(ZKT)
iFace702 multi-biometric identification time attendance and access control terminal adopts Software’s latest ZEM600 platform with Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
- Identification methods include Face, Fingerprint/RFID and/or Password
- Elegant ergonomic design
- 3' TFT touch screen is user-friendly and very intuitive
- 6 user-defined function keys
- Contact relays for door access control (wires to door strike or 3rd party panel
- Web server management software via IE browser
- Optional extendable scheduled-bell
- Infra-red optical system enables user-identification in poorly lit environments
- Optional built-in battery backup provides approx 4 hours continuous operation
- Optional built-in wireless Wi-Fi or GPRS for wireless communication
- Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell
- Wiegand Output for connections to 3rd party access control panels
| Model | iFace702 |
|---|---|
| CPU | Multi-Bio CPU 630 MHz |
| Memory | 256M Flash, 64M SDRAM |
| Hardware Platform | ZEM600 Multi-Medium Development Platform |
| Fingerprint Sensor | Optical Fingerprint Sensor without film |
| Camera | High Resolution Infrared Camera |
| Display | 4.3’’ TFT touch screen |
| Face capacity | 700 |
| Fingerprint capacity | 3000 |
| ID Card capacity | 10,000 |
| Logs capacity | 100,000 |
| Algorithm Version | Face 5.0 & Finger 10.0 |
| 2000mAh backup battery | Optional |
| Communication | TCP/IP,RS232/485 |
| USB-HOST | Two USB-Host |
| Wireless Wi-Fi | Optional |
| Time attendance Standard functions | ID Card(402 Optional), Automatic Status Switch,Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
| Access control interfaces for | 3rd party electronic lock, door sensor, exit button |
| Wiegand Signal | Output |
| Optional functions | serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS |
| Power supply | 12V3A |
| Verification Speed | ≤2 sec |
| Operating temp | 0°C- 45 °C |
| Operating Humidity | 20%-80% |
| Dimension | 193.6*165*111 mm (Length*Width*Thickness) |
| Net Weight | 1.5 kg |
