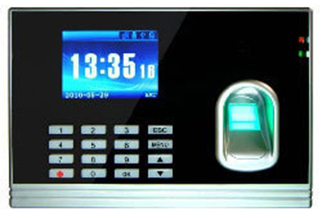

ET58 Fingerprint Time Attendance
T58, uses the latest algorithmization which can read the Fingerprint by 360 Degrees. Arm11CPU Enable it to run the machine very fast. With the TCP/IP communication port, you can connect the Machine with the hub or central computer to get the online Time attendance records. It has the relay out which can output signal to the lock to construct the access control system. Besides for, it has the WG26 input and output which can connect the card reader or used as a reader. It can connect to the clock bell. When you set up the time, the clock bell will be ringing
| Model | T58 | |
|---|---|---|
| Hardware | CPU:ARM11/ SDRAM:64M / FLASH:32M | |
| Capacity | Fingerprint Capacity: 3000 templates | |
| Response time | verify OK < 1S verify Invalid < 1S |
|
| FAR | <0.0001% (security level=1) | |
| FRR | <0.01% (security level=1) | |
| Verify mode | 1: Fingerprint,Password,fingerprint +passwordnt 2: Fingerpress only (recommended) |
|
| Working mode | Time attendance, standalone, can working | |
| Resolution | 500dpi | |
| Fingerprint verify mode | 1:N & 1:1 | |
| Period of data | 3 Years when no current | |
| Capacity of connecting net | RS 485 mode, 255 units TCP/IP LAN/VAN, Distance 1200m | |
| Transaction Storage | 100000 entries | |
| Communication interface | RS232、RS485、TCP/IP、USB Flash | |
| Baudrate(BPS) | 9600，19200，38400，57600，115200 | |
| LCD Language | English | |
| Display | 2.8” inch TFT | |
| Show & Voice out | Time, ID number, Name , English | |
| Size | 170*150*20mm | |
| Save function | Turn off device Automatically for saving | |
| Power supply &Input Voltage | 230V, 50 to 60 Hz, 5VDC ±5% | |
| Working Environment | Temperature | 0°C-50°C |
| Humidity | 10%-80% | |
| Model | ET58 |
|---|---|
| Screen Size | 128 * 64 mm COLOUR LCD |
| Identification Time | ≤1.s |
| Finger Print Capacity | 3,000 |
| Log Capacity | 100,000 |
| Temperature | 0 – 45 C |
| Power | DC 9v |
| Voltage Range | 100v – 230 v AC |
| Language | Multi Language, English, French, Spanish, Arabic, etc |
| Communication Protocols | Ethernet TCP/IP and shall be capable Working in a routed IP network which consists of multiple VLANs |
| Operation Mode | Finger Print, Pin+ Finger Print |
| Access Control | Yes |
| ID card Reader | Yes(Optional) |
